The Sweeps

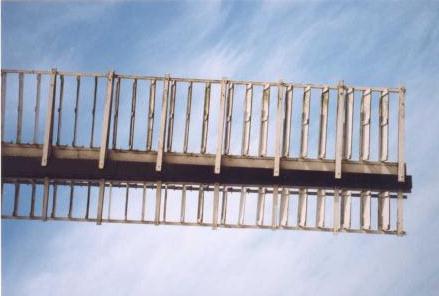

Shutters Open
|

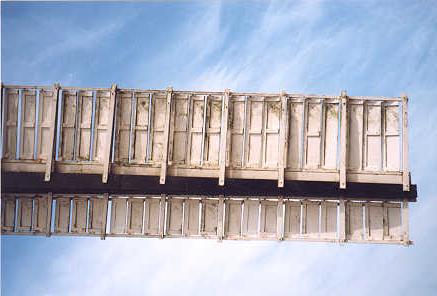

Shutters Closed
|
Chain wheel below fantail. |
Cranbrook Union Mill has patent sweeps with moveable shutters, operated by a chain which hangs down to the staging from the rear of the cap. When the chain wheel turns, a rack and pinion gear moves a pushrod through the hollow windshaft to operate the spider
, thus opening or closing the shutters.
See the FANTAIL. Go inside the CAP. OR click on the mill diagram.
